Understanding Digital Video Surveillance Recorders: The Backbone of Security Systems
Ever wondered what actually happens to all that security camera footage? That’s where a digital video surveillance recorder comes into play – the unsung hero of your security system.

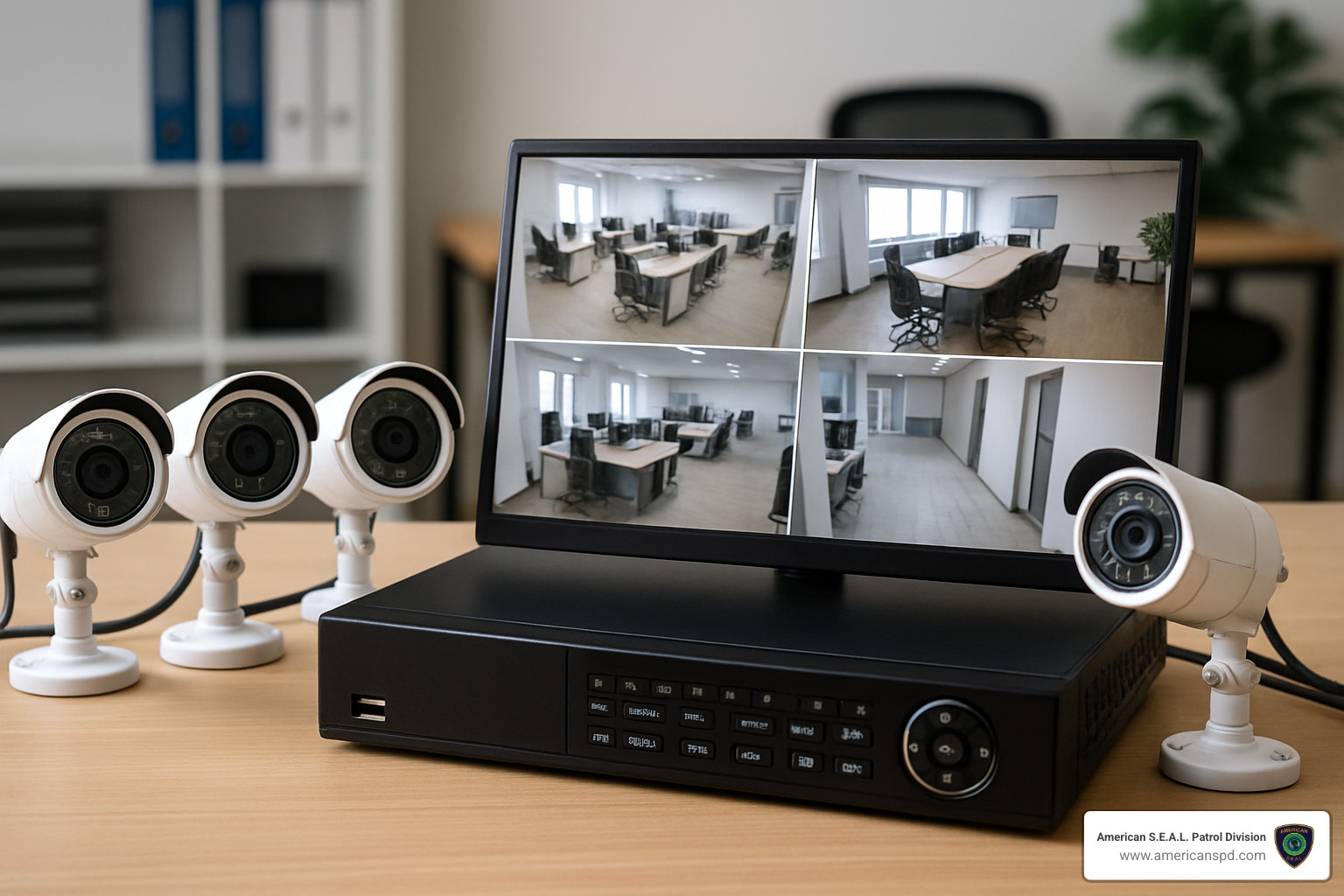

A digital video surveillance recorder (DVR) is the brain behind your security cameras. Think of it as the trusty librarian that carefully catalogs and stores every moment your cameras capture. These specialized devices take the raw video signals from your security cameras, transform them into digital format, and neatly tuck them away on built-in hard drives for when you need them most.
Unlike the clunky VCRs of yesteryear (remember those tapes that always seemed to jam?), today’s DVRs never compromise on footage quality. They quietly work around the clock, capturing either continuous footage or springing into action when they detect movement. And the best part? When storage space runs low, they simply begin overwriting the oldest footage – no manual tape-swapping required!
“The digital video recorder, or DVR system, provides an important final piece to your home security,” as industry experts often point out. For property managers, this technology has been nothing short of in how they protect their investments.
What makes DVRs particularly valuable is their independence. Even if your internet connection decides to take an unexpected vacation, your digital video surveillance recorder keeps right on working. This reliability means you’ll never miss those critical security moments that matter most. Depending on your settings and hard drive capacity, most systems can comfortably store between 30-90 days of footage.
While newer Network Video Recorder (NVR) systems have entered the market with their own advantages, DVRs remain the practical choice for many property managers. They’re especially ideal if you’re working with existing analog camera infrastructure or managing properties where internet reliability isn’t guaranteed. With an average lifespan of about 5 years under normal conditions, they offer excellent value and peace of mind.
Looking to expand your security knowledge? Check out these related resources:
– digital cctv camera
– cctv camera with ip address
– cctv monitoring security
The Basics: What Is a Digital Video Surveillance Recorder?
Remember those bulky VCRs we used to record our favorite TV shows? The digital video surveillance recorder (DVR) is like that old VCR’s sophisticated, security-minded cousin. Born in the late 1990s, DVRs revolutionized how we protect our properties by eliminating those frustrating tape changes and dramatically improving image quality.
At its heart, a DVR is designed to work hand-in-hand with analog cameras through coaxial cabling – those cables with the twist-on BNC connectors that somehow never twist on quite right the first time! The system operates as a closed-circuit television (CCTV) setup, meaning your video signals travel directly from cameras to the recorder without needing to bounce through external networks.
Unlike those old VCRs that would gradually wear out your favorite recordings, DVRs maintain perfect footage quality no matter how many times you review it. Plus, they’re smart enough to automatically overwrite the oldest recordings when storage fills up – no more rushing to swap tapes!
One of the most reassuring aspects of a DVR system is its inherent security advantages. Since it doesn’t necessarily need internet connectivity to function, it’s naturally less vulnerable to network-based attacks. This makes DVRs particularly valuable for Houston businesses and homes where network security is a concern or internet service might be spotty.
Even the scientific community has taken notice of DVR reliability. Scientific research on DVR capture methods confirms these systems provide dependable, high-quality video capture for applications beyond security, including behavioral analysis and monitoring.
How a digital video surveillance recorder works with cameras
The magic of a digital video surveillance recorder happens through a fascinating process that’s constantly working behind the scenes to keep your property secure:
First, your analog cameras capture video and send continuous electrical signals through those coaxial cables to your DVR. When these signals arrive, specialized hardware inside the DVR converts these analog signals into digital data that computers can understand and process – similar to how digital TV converted those fuzzy broadcast signals into crystal-clear pictures.
Once digitized, your video undergoes encoding (typically using H.264 or the newer, more efficient H.265) to compress the data without sacrificing quality. This compression is absolutely crucial – without it, even a massive hard drive would fill up in hours rather than weeks!
Your processed digital video is then written to the DVR’s internal hard drive in an organized file structure. The DVR manages this storage intelligently, including implementing those handy overwrite cycles when the drive reaches capacity. When you need to review footage, the DVR retrieves, decompresses, and displays stored video through your connected monitor or lets you export important clips to external storage.
The beauty of modern DVRs is that this entire process happens in real-time, allowing for simultaneous recording and playback – something those old VCR systems could only dream about!
Core components inside a digital video surveillance recorder
If we could peek inside a digital video surveillance recorder (though we don’t recommend trying this at home unless you’re a qualified technician!), you’d find several key components working together:
The brain of the system is the main processor or SoC (System-on-Chip), specifically designed for handling video processing tasks. Working alongside it is the video encoder hardware that compresses those video signals, making sure your footage doesn’t eat up storage space unnecessarily while still looking crisp and clear.
Temporary RAM memory helps the system juggle multiple video streams simultaneously – essential when you’re monitoring several areas at once. For long-term storage, SATA drive bays provide connections for hard drives where your footage actually lives. Professional DVRs typically offer multiple bays so you can expand storage as needed.
The DVR’s operating system is usually a proprietary firmware that runs the interface and features, stored on a separate memory chip. This specialized software is what makes your DVR reliable for security purposes rather than general computing.
Physical connections include video/audio I/O ports for cameras (BNC), monitors (HDMI/VGA), and audio devices, while a network interface (Ethernet port) allows connecting to your local network or the internet for remote viewing capabilities. And of course, a power supply converts standard AC power to the DC voltages needed by all these internal components.
The quality of these components directly impacts how well your security system performs. At American S.E.A.L. Patrol Division, we carefully select DVR systems with robust components to ensure our Houston clients enjoy years of reliable protection without worrying about technical failures when they matter most.
DVR vs NVR vs Hybrid: Choosing the Right Recorder
Feeling a bit overwhelmed by all the recording options for your security system? Don’t worry—I’m here to break it down in plain English. When setting up your surveillance system, choosing the right recorder is like picking the right foundation for your house—it matters a lot!
DVR (Digital Video Recorder)
The traditional digital video surveillance recorder (DVR) has been the backbone of security systems for years. Think of DVRs as the reliable family sedan of surveillance—dependable, familiar, and gets the job done without breaking the bank.
DVRs work with analog cameras connected through those twisty BNC coaxial cables you might recognize. What’s nice about DVRs is their simplicity—they convert the analog camera signals into digital recordings you can actually use and store. For many of our Houston clients with tighter budgets or existing analog setups, DVRs offer a comfortable, cost-effective solution that doesn’t require a network to function.
NVR (Network Video Recorder)
Think of NVRs as the tech-savvy cousin of the DVR family. Instead of working with analog cameras, NVRs pair with IP cameras that send already-digitized video through your network.
The beauty of an NVR system is in its sleek, simplified cabling. Most NVRs support Power over Ethernet (PoE), meaning a single cable carries both power and data to each camera—no more wrestling with multiple cables per camera! NVRs typically support those gorgeous high-resolution cameras (4K and beyond) that capture details you wouldn’t believe. The tradeoff? They generally cost more upfront and require proper network setup.
Hybrid/XVR (eXtended Video Recorder)
Can’t decide between DVR and NVR? You don’t have to! Hybrid recorders (often called XVRs) are the “best of both worlds” option.
“All of the DVRs we sell are XVR recorders, which are hybrid recorders that provide functions of both an Analog DVR and NVR in one box, allowing use of both BNC cameras and IP cameras,” is something we often tell our clients. These flexible systems let you mix analog and IP cameras on the same recorder—perfect if you want to keep your existing analog cameras while gradually upgrading to newer IP technology.
Main differences in cabling, resolution & channel count
The technical differences between these systems have real-world impacts on your installation and what you can expect performance-wise:
When it comes to cabling, DVRs require two cables per camera—one coaxial cable for video and a separate power cable. This can make installation more complex and create a bit of a wire jungle. NVRs, on the other hand, typically use a single Ethernet cable that handles both power and data through PoE technology—much cleaner! Hybrid systems accommodate both cable types, giving you maximum flexibility.
For resolution, traditional DVRs typically top out at 1080p, though newer HD-over-Coax DVRs can support up to 4K with special cameras. NVRs routinely handle 4K, 8MP, and even higher resolutions, giving you crystal-clear footage that can capture the smallest details. Hybrid systems support the full range, depending on which camera type you’re using.
Regarding channel count, we often tell our Houston clients, “DVRs can support up to 32 channels for analog cameras, while NVRs can support up to 128 channels for IP cameras.” This makes NVRs far more scalable for large properties or businesses expecting to grow. Hybrid systems offer combined channel counts but may have limits on how many of each camera type you can connect.
Pros & cons of each platform
Let’s be honest about the strengths and limitations of each system:
DVR systems shine in their affordability and simplicity. They’re perfect if you’re working with a tighter budget or already have analog cameras installed. The fact that they work without a network makes them less vulnerable to cyber attacks and ideal for locations with poor internet. However, they do have resolution limitations compared to IP systems, require more cabling, and offer fewer advanced features.
NVR systems excel in image quality and flexibility. With support for ultra-high-resolution cameras and simplified cabling through PoE, they make installation cleaner and footage clearer. They also offer more advanced features like sophisticated motion detection and AI analytics. The downsides? Higher initial costs, reliance on network infrastructure, and potential security vulnerabilities if not properly configured.
Hybrid/XVR systems offer the best compromise. They allow you to use both analog and IP cameras, making them perfect for phased upgrades without replacing everything at once. You get a future-proof investment that can grow with your needs. The main drawbacks are slightly more complex configuration and potentially higher cost than a pure DVR system.
At American S.E.A.L. Patrol Division, we find hybrid systems work best for most of our Houston clients. They provide that sweet spot of current functionality and future flexibility—allowing you to start with what you need today while keeping doors open for tomorrow. After all, security isn’t just about protecting what you have now—it’s about being prepared for whatever comes next.
Setting Up Your DVR System: Cameras, Cabling & Storage
Setting up a digital video surveillance recorder system requires careful planning and attention to detail. Let’s walk through the essential components and considerations.
Camera Compatibility
DVR systems work with analog cameras, which come in several varieties:
– Standard analog (older technology, typically 720p or less)
– HD-TVI (supports up to 8MP/4K resolution)
– HD-CVI (supports up to 4MP resolution)
– AHD (supports up to 5MP resolution)
When selecting cameras, ensure they match the signal type supported by your DVR. Most modern DVRs support multiple analog HD formats, but it’s always best to verify compatibility before purchasing.
Cabling Requirements
The backbone of any DVR system is its cabling:
– Coaxial Cable: RG59 or RG6 with BNC connectors for video transmission
– Power Cable: Typically 18-gauge for camera power supply
– Siamese Cable: Combined coaxial and power in one jacket for cleaner installation
For longer cable runs (over 300 feet), consider using:
– Video baluns to convert to CAT5/6 for extended distances
– Higher quality coaxial cable with better shielding
– Amplifiers for boosting signal strength
Power Supply Options
DVR cameras require power, which can be supplied through:
– Individual power adapters for each camera
– Centralized power supply units with multiple outputs
– Uninterruptible power supplies (UPS) for backup during outages
We recommend centralized power supplies with battery backup for most installations, as they provide cleaner installation and continuous operation during brief power interruptions.
Hard Drive Selection and Storage Capacity
The heart of your digital video surveillance recorder is its storage system:
– Enterprise-grade surveillance hard drives are recommended (designed for 24/7 operation)
– Consumer drives may fail prematurely under constant write cycles
– Plan for appropriate capacity based on:
– Number of cameras
– Resolution settings
– Frame rate
– Recording schedule (continuous vs. motion-activated)
How long can a digital video surveillance recorder keep footage?
The retention period for your surveillance footage depends on several factors:
- Hard Drive Capacity: The total storage available (measured in terabytes)
- Video Bitrate: Higher quality settings consume more storage
- Number of Cameras: Each camera requires its own storage allocation
- Recording Schedule: Continuous recording uses more space than motion detection
- Compression Technology: H.265 is more efficient than older H.264 encoding
As a general guideline:
– Most households see a DVR recording cycle of 30 to 60 days before overwriting
– Businesses typically maintain 60 to 90 days of footage
– Higher resolution settings dramatically reduce these timeframes
To calculate your specific needs, use this formula:
Storage needed (GB) = Bitrate (Mbps) × 0.125 × Hours per day × Days of retention × Number of cameras
For example, a 4-camera system recording at 2Mbps per camera, 24 hours a day for 30 days would require:
2 Mbps × 0.125 × 24 hours × 30 days × 4 cameras = 720 GB
Expanding or optimizing storage
As your surveillance needs grow, you may need to expand or optimize your storage:
Hardware Expansion Options:
– Add additional internal hard drives (if DVR has multiple bays)
– Connect external storage devices via eSATA or USB (if supported)
– Implement RAID configurations for redundancy and expanded capacity
– Upgrade to a DVR with larger capacity
Software Optimization Techniques:
– Enable motion detection to record only when activity occurs
– Reduce frame rate during periods of low activity
– Schedule different recording parameters for day/night
– Implement H.265 compression if available (30-50% more efficient than H.264)
– Adjust resolution based on the importance of different camera views
“Most businesses tend to have a policy of 60 to 90 days for recorded data before it is overwritten,” notes industry experts. At American S.E.A.L. Patrol Division, we help our Houston clients determine the optimal retention period based on their specific security requirements and regulatory needs.
Offline operation & remote viewing options
One of the key advantages of a digital video surveillance recorder is its ability to function without internet connectivity:
Offline Operation:
– Records continuously to local storage regardless of internet status
– Provides security footage even during network outages
– Eliminates vulnerabilities associated with internet-connected devices
– Ideal for remote locations with limited connectivity
Local Viewing Options:
– Direct connection to a monitor via HDMI, VGA, or BNC
– Local network access via computer or mobile device
– Multi-screen displays for monitoring multiple cameras
Remote Access (when internet is available):
– Web browser interfaces for desktop access
– Dedicated mobile apps for iOS and Android
– P2P (Peer-to-Peer) technology for simplified remote connection
– DDNS services for accessing systems with dynamic IP addresses
To enable remote viewing, you’ll need to:
1. Connect the DVR to your router via Ethernet
2. Configure port forwarding on your router (typically ports 80, 554, and/or 8000)
3. Set up a DDNS service if you don’t have a static IP address
4. Install the appropriate app on your mobile device
5. Configure strong passwords and security settings
“DVR camera systems do not require an internet connection to operate, making them suitable for remote locations without network access,” explains security experts. However, internet connectivity adds the valuable capability of remote monitoring and alerts.
Smart Features, AI & Remote Monitoring
Modern digital video surveillance recorders have evolved far beyond simple video capture devices. Today’s systems incorporate advanced features that make security monitoring more effective and less labor-intensive.
Core Smart Features
Motion Detection:
The most basic smart feature, motion detection triggers recording only when movement is detected in the camera’s field of view. This saves storage space and makes finding important footage easier.
Video Analytics:
More advanced than simple motion detection, video analytics can:
– Distinguish between humans, vehicles, and animals
– Detect when objects are abandoned or removed
– Recognize license plates
– Count people entering or exiting an area
– Detect loitering or unusual activity
Digital Tripwire:
This feature creates virtual boundaries that, when crossed, trigger recording and alerts. It’s particularly useful for perimeter security and detecting intrusions.
Mobile Alerts:
When connected to the internet, DVRs can send push notifications to your smartphone when:
– Motion is detected
– A tripwire is crossed
– A camera is tampered with
– The system loses power
– Hard drive issues occur
Remote Viewing:
Access your surveillance system from anywhere using:
– Dedicated mobile apps
– Web browsers
– Desktop client software
Leveraging AI to cut false alarms
One of the most significant advancements in digital video surveillance recorder technology is the integration of artificial intelligence to reduce false alarms:
Object Classification:
AI algorithms can distinguish between:
– People vs. animals
– Vehicles vs. other moving objects
– Trees moving in the wind vs. actual intruders
Behavioral Analysis:
Advanced systems can identify suspicious behavior patterns:
– Loitering in restricted areas
– Running when others are walking
– Entering through unusual access points
Environmental Filtering:
AI can filter out alerts caused by:
– Rain or snow
– Changing light conditions
– Shadows and reflections
– Small animals or insects
“AI video and sound integrations reduce false alerts with object recognition and trip wires,” notes industry experts. This technology dramatically improves the efficiency of security monitoring by ensuring that alerts are meaningful and actionable.
At American S.E.A.L. Patrol Division, we’ve seen how these AI capabilities transform security operations for our Houston clients, reducing false alarms by up to 90% while ensuring genuine security events are never missed.
Secure remote access best practices
Remote access to your digital video surveillance recorder adds tremendous convenience but requires careful security measures:
Strong Authentication:
– Use complex, unique passwords (minimum 12 characters with mixed case, numbers, and symbols)
– Enable two-factor authentication when available
– Change default credentials immediately upon installation
Network Security:
– Place DVRs behind firewalls
– Use VPNs for encrypted remote access
– Disable unnecessary ports and services
– Create a separate VLAN for security devices when possible
Regular Updates:
– Keep DVR firmware updated to patch security vulnerabilities
– Update mobile apps and client software regularly
– Check for security bulletins from manufacturers
Access Control:
– Create separate user accounts with appropriate permissions
– Limit administrative access to essential personnel
– Log and audit access to sensitive footage
Encryption:
– Enable SSL/TLS for web interfaces
– Use encrypted connections for remote viewing
– Ensure exported video maintains chain of custody
The consequences of neglecting security can be severe. Hacked camera risks include unauthorized access to private footage, use of cameras in larger network attacks, and even manipulation of video evidence.
“Remote viewing without any monthly fee” is a common feature of modern DVR systems, but this convenience should never come at the expense of security. At American S.E.A.L. Patrol Division, we implement comprehensive security protocols for all remote-accessible systems we install in Houston.
Buying Guide: Key Specs, Costs & Future-Proofing
Shopping for a digital video surveillance recorder can feel overwhelming with all the technical specifications and price points. Let’s break down what really matters so you can make a smart investment that meets your needs today and tomorrow.
Essential Specifications to Consider
When I’m helping clients in Houston select the right system, I always start by discussing channel count. Think of channels as the number of cameras your DVR can handle simultaneously. For a modest home or small shop, a 4-channel system usually does the trick. Average-sized homes or businesses typically need 8 channels to cover all entry points and valuable areas. Larger properties with multiple sections benefit from 16 channels, while commercial facilities often require 32 channels for comprehensive coverage.
Resolution is another critical factor that directly impacts how useful your footage will be. While 1080p (2MP) cameras provide the minimum detail needed to identify people and events clearly, 4K (8MP) cameras capture enough detail to recognize faces and read license plates from a distance. Many of our clients find that 4MP or 5MP cameras offer that sweet spot between crystal-clear footage and reasonable storage requirements.
Don’t overlook recording performance! A system that captures 30 frames per second provides smooth, television-like video, though 15fps is perfectly adequate for most security purposes. Higher bitrate support means better image quality but will fill your hard drive faster. Also check if the DVR can simultaneously record and play back footage—a feature you’ll appreciate when reviewing incidents.
Storage capacity might not seem exciting, but it’s crucial for a system you’ll rely on daily. Look at how many hard drive bays the DVR offers (ranging from 1-8 depending on the model), the maximum capacity each bay supports (typically 6-10TB), and whether external expansion is possible. Higher resolution and frame rates mean you’ll need more storage space.
The smart features available can dramatically improve your security system’s effectiveness. Modern digital video surveillance recorders offer sophisticated motion detection, AI-based analytics to reduce false alarms, remote viewing capabilities, and mobile apps for on-the-go monitoring. The quality and user-friendliness of these apps vary significantly between manufacturers.
Finally, check the connectivity options. A gigabit network interface (1Gbps) provides faster remote access than older 100Mbps connections. Multiple USB ports make backing up footage easier, and HDMI/VGA outputs allow for direct connection to monitors for local viewing.
Cost Considerations
When budgeting for your digital video surveillance recorder system, the DVR itself is just one component of your total investment.
Entry-level systems with 4-8 channels typically cost between $300-1,000 all-in. The DVR unit itself runs $100-300, with each compatible camera adding $30-80. Don’t forget to budget $60-150 for a surveillance-grade hard drive (consumer drives aren’t designed for 24/7 operation) and $50-200 for cabling and accessories.
Mid-range systems covering 8-16 channels generally fall in the $750-3,000 range. The DVR unit costs $200-500, with better cameras ranging from $50-150 each. You’ll want larger hard drives in this category ($150-300 for 4-6TB models) and more extensive cabling ($100-400).
Professional installations with 16-32 channels can range from $2,000 to over $10,000 depending on the quality and features. These systems feature more powerful DVR units ($400-1,200), professional-grade cameras ($100-300 each), multiple high-capacity hard drives ($300-800), and more complex installation requirements ($500-2,000).
“DVR systems are significantly more affordable than NVR systems, mainly due to the lower cost of analog cameras,” as many security professionals will tell you. This makes DVR systems particularly attractive when you need reliable security on a tighter budget.
Mixing and matching cameras & recorders
One question I hear frequently from our Houston clients is whether they can use cameras from different manufacturers with their digital video surveillance recorder. The short answer is “sometimes, but with caveats.”
The key compatibility factors include signal format (TVI, CVI, AHD, or CVBS), resolution support, control protocol compatibility for PTZ (pan-tilt-zoom) cameras, and power requirements. Most modern DVRs support multiple signal formats, but they may not support the highest resolutions across all formats.
For hybrid DVRs that also accept IP cameras, look for ONVIF compliance, which provides some standardization between different manufacturers. However, even with ONVIF, you might not get access to all the advanced features that would be available with the manufacturer’s native cameras.
If you’re determined to mix and match, always test a single camera before buying multiple units. Verify that all the features you care about actually work across brands, and keep good documentation about which features work with which components. Also, be prepared to deal with multiple support channels if issues arise.
While mixing is technically possible, I generally recommend staying within the same ecosystem for the smoothest experience and most comprehensive support. The money saved by mixing often isn’t worth the potential headaches.
Lifespan, maintenance & total cost of ownership
A digital video surveillance recorder system is a long-term investment, and understanding the full lifecycle costs helps you budget appropriately.
Most DVR units have a working lifespan of 5-7 years, though many of our clients get even longer service in well-maintained environments. Hard drives typically last 3-5 years under continuous operation—they’re the component most likely to need replacement first. Quality cameras generally last 5-10 years depending on environmental conditions (outdoor cameras in harsh environments age faster). Properly installed cabling and infrastructure should last 10+ years without issues.
Maintaining your system isn’t complicated, but it is essential. Regular firmware updates keep your system secure and sometimes add new features. Monitoring hard drive health and replacing drives proactively prevents footage loss. Cameras occasionally need cleaning and repositioning, especially outdoor units. Regular system performance checks help identify potential issues before they become problems.
Don’t forget to factor in ongoing costs: electricity for 24/7 operation, replacement hard drives every few years, occasional service calls for troubleshooting, and any applicable software license renewals. Eventually, you’ll also face the cost of system upgrades as technology advances and your security needs evolve.
At American S.E.A.L. Patrol Division, we work with our clients to develop practical maintenance plans that maximize system longevity while minimizing unexpected expenses. With proper care, your security investment will provide reliable protection and peace of mind for years to come.
Installation & Security Best Practices
Setting up your digital video surveillance recorder system isn’t just about plugging in some cameras and hitting record. A thoughtful installation ensures you get the protection you need while avoiding common pitfalls that could compromise your security.
Site Survey and Planning
Before you drill a single hole or run any cable, take time to walk your property with a critical eye. Think like both a security expert and a potential intruder.
At American S.E.A.L. Patrol Division, we always start with identifying the most vulnerable areas of your property – entryways, first-floor windows, and secluded spots that might attract unwanted visitors. Next, we carefully assess lighting conditions throughout the day and night, as this dramatically affects camera performance.
Mapping out your cable routes might seem tedious, but it’s one of those upfront efforts that saves major headaches later. That running cables near electrical lines or HVAC equipment can introduce interference in your video signal.
Finding the right home for your digital video surveillance recorder is equally important. You’ll want a secure, climate-controlled location that’s accessible for maintenance but not easily found by intruders. If someone steals your DVR, they’ve also stolen all your evidence!
Camera Placement Best Practices
The effectiveness of your entire system hinges on smart camera placement. Mount your cameras at 8-10 feet height – high enough to prevent tampering but low enough to capture identifiable details of faces and license plates.
“The most common mistake we see in DIY installations is cameras pointed directly into the sun or bright backgrounds,” notes our installation team. This creates silhouettes instead of clear images. Position your cameras to avoid direct sunlight and consider the sun’s path throughout different seasons.
For truly effective security, ensure your most critical areas have overlapping coverage from multiple cameras. If one camera fails or is tampered with, you’ll still have footage from another angle.
When installing outdoor cameras, don’t just check the weather rating – consider the environment realistically. That IP66-rated camera might be “weatherproof” on paper, but mounting it where it faces driving rain directly might still cause problems over time.
And don’t forget about privacy considerations. In Houston, we’re careful to position cameras to avoid capturing neighboring properties, which can create legal issues down the road.
Cable Installation Guidelines
The cables connecting your cameras to your digital video surveillance recorder are the lifelines of your system, yet they’re often the most overlooked component.
Quality matters tremendously here. We recommend using professional-grade RG59 or RG6 coaxial cable with proper shielding for analog camera setups. These cables cost a bit more upfront but prevent countless headaches from signal degradation and interference.
When running cables, maintain gentle curves rather than sharp bends, which can damage the internal structure. A good rule of thumb is to keep the bend radius at least ten times the cable diameter.
Secure your cables every 4-6 feet along their run to prevent sagging and potential damage. When bringing cables into buildings, always create a drip loop – a downward curve before entry – to prevent water from following the cable inside.
One simple habit that saves hours of future troubleshooting: label both ends of every cable. Your future self will thank you when it’s time for maintenance or troubleshooting!
DVR Placement and Protection
Your digital video surveillance recorder deserves special attention when it comes to placement and protection. This device is the brain of your entire security system.
“Where should I keep my DVR? In a secure, climate-controlled area near the router, such as a closet or office,” advise security experts. We couldn’t agree more. The ideal location balances security with practicality.
Heat is the enemy of electronic equipment. Ensure your DVR has at least 6 inches of clearance on all sides for proper ventilation. Keep it in a temperature range of 60-75°F whenever possible, and away from dusty environments that can clog fans and cause overheating.
Power protection is non-negotiable. Connect your DVR to an uninterruptible power supply (UPS) to prevent data corruption during power outages and protect against damaging power surges.
Finally, physically secure the unit itself. Whether that means locking it in a cabinet, securing it to a shelf, or even bolting it down – make it difficult for anyone to simply pick up and walk away with your security footage.
Network Security Measures
If your digital video surveillance recorder connects to your network for remote viewing, you’ve created a potential entry point into your system that needs proper protection.
The first rule is simple but often ignored: change those default passwords immediately! Factory passwords are widely known and are the first thing attackers try. Create unique, complex passwords that combine uppercase and lowercase letters, numbers, and special characters.
Keep your DVR’s firmware updated regularly. Manufacturers frequently patch security vulnerabilities, but these fixes only help if you install them.
When possible, place your security devices on a separate network segment or VLAN, isolated from your main network. This creates an additional layer of protection for both your surveillance system and your other networked devices.
Disable any services or ports you don’t actively use, as each one represents a potential entry point. When accessing your system remotely, always use encrypted connections to prevent anyone from intercepting your video feeds.
Compliance Considerations
For some of our Houston clients, particularly those working with government contracts or in regulated industries, compliance with standards like NDAA (National Defense Authorization Act) is essential. These regulations restrict the use of certain foreign-manufactured equipment in security systems.
If your business falls under these requirements, we’ll help ensure your digital video surveillance recorder system meets all applicable standards while still providing the protection you need.
At American S.E.A.L. Patrol Division, our Houston installation teams follow these best practices and more to ensure your security system provides reliable protection for years to come. We believe that proper installation isn’t just about making things work today – it’s about creating a system that continues to protect your property effectively for the long haul.
DVR Use Cases & Alternatives
When it comes to protecting what matters most, a digital video surveillance recorder can be your eyes when you can’t be there yourself. Let’s explore the many ways these versatile systems are being used today and some alternatives worth considering.
Residential Applications
Home is where the heart is—and where a digital video surveillance recorder can provide incredible peace of mind. For Houston homeowners, we typically recommend 4-8 channel systems strategically placed to cover the areas that matter most.
“I never realized how much I needed this until I caught the neighborhood kids throwing rocks at my windows,” one of our clients told us recently. Beyond catching mischief-makers, home DVR systems excel at monitoring entry points, keeping an eye on package deliveries (goodbye, porch pirates!), and even checking in on pets or kids playing in the backyard while you’re busy in another part of the house.
Many parents find unexpected value in being able to verify when teenagers actually came home or when the dog walker really showed up. It’s not about distrust—it’s about verification and peace of mind.
Small Business Security
For small business owners, a digital video surveillance recorder is often one of the smartest investments you can make. The systems pay for themselves quickly by deterring shoplifting, protecting against fraudulent slip-and-fall claims, and providing evidence when incidents do occur.
“DVRs are an affordable security solution for small businesses, with initial savings due to integration with lower quality cameras,” notes industry analysis. While the image quality might not match high-end IP systems, the cost advantage makes these systems accessible to businesses of all sizes—from mom-and-pop shops to growing enterprises.
Many of our Houston retail clients have found that simply having visible cameras reduces theft attempts significantly. And when it comes to employee monitoring, the presence of cameras often improves productivity and reduces inventory shrinkage without creating an atmosphere of distrust.
Remote Location Monitoring
Where digital video surveillance recorders truly shine is in locations where internet is spotty or non-existent. Think about that vacation cabin in the woods, the storage shed full of expensive equipment, or construction sites that are prime targets for theft.
“DVR camera systems do not require an internet connection to operate, making them suitable for remote locations without network access,” explains security professionals. This independence from network infrastructure is a tremendous advantage for isolated settings.
We recently helped a Houston-area ranch owner set up a solar-powered DVR system to monitor livestock and equipment miles from the nearest internet connection. When he visits the property, he can quickly review recorded footage to check for any issues that occurred in his absence.
Mobile Applications
Not all surveillance needs stay in one place. Specialized mobile DVR systems have been developed for vehicles and equipment that are constantly on the move. These rugged systems can handle the bumps, vibrations, and temperature swings that would quickly destroy standard equipment.
Fleet managers use these systems to monitor driver behavior and provide evidence in case of accidents. Construction companies protect expensive equipment from vandalism and theft even in remote job sites. RV owners gain an extra layer of security while traveling and when their vehicles are in storage.
These mobile-friendly systems are built differently—with solid-state storage instead of spinning hard drives, reinforced connections to prevent loosening from vibration, and power management features to work with vehicle electrical systems.
Alternative Solutions to Consider
While digital video surveillance recorders are fantastic solutions for many situations, they’re not the only option. Depending on your specific needs, you might want to consider:
Cloud-Based Surveillance offers the advantage of off-site storage—meaning even if someone steals your recording device, your footage remains safe in the cloud. The downside? You’ll need reliable internet and will likely pay monthly subscription fees. For many of our Houston clients, the peace of mind is worth the extra cost.
Edge Recording puts the storage right in the cameras themselves, usually on SD cards. This eliminates the need for a central recorder entirely and can be perfect for small deployments of just a few cameras. The trade-off is limited storage capacity and more complicated footage retrieval.
Hybrid Cloud Solutions give you the best of both worlds—local recording for reliability with cloud backup for added protection. These systems often include advanced analytics but come with a higher price tag.
Managed Security Services take the burden of monitoring off your shoulders entirely. Professional security teams watch your feeds and respond immediately to security events. This is particularly valuable for businesses that can’t afford dedicated security staff but need rapid response to incidents.
At American S.E.A.L. Patrol Division, we don’t believe in one-size-fits-all solutions. Every Houston home and business has unique security needs, and we take the time to understand yours before recommending whether a traditional digital video surveillance recorder or an alternative approach would serve you best.
After all, the best security system isn’t necessarily the most expensive or feature-packed—it’s the one that addresses your specific concerns and gives you confidence that what matters most is protected.
Frequently Asked Questions about Digital Video Surveillance Recorders
Can a DVR run without the internet?
Yes, absolutely. One of the greatest strengths of a digital video surveillance recorder is its independence. Your DVR will happily record away whether you have internet or not.
Think of your DVR as a self-contained security system. It captures video from your cameras, processes the footage, and stores everything on its internal hard drives without needing any outside help. You can still watch your footage on directly connected monitors and access all your recordings locally.
Where internet comes into play is for the “extras” – checking your cameras from your phone while on vacation, getting email alerts when something triggers a camera, keeping the system clock accurate, downloading firmware updates, or backing up to the cloud.
This internet independence is why many of our Houston clients choose DVR systems for properties with spotty internet connections. Your security never takes a day off, even when your internet provider does!
Is it possible to view my DVR on a smartphone while traveling?
Yes, with proper setup. Modern digital video surveillance recorders make staying connected to your property remarkably simple, no matter where your travels take you.
Most manufacturers provide user-friendly mobile apps for both iPhone and Android devices. Many newer DVRs include P2P (Peer-to-Peer) technology that makes connecting almost as simple as scanning a QR code – no complex network configuration required. Some systems even offer web browser access if you prefer not to install an app.
Getting this remote viewing capability up and running does require a few steps:
– Connecting your DVR to your internet router
– Setting up port forwarding (if your system doesn’t use P2P)
– Creating a DDNS account if you don’t have a static IP address
– Installing the manufacturer’s mobile app
– Setting up secure login credentials (please use a strong password!)
As one security expert explains: “Connect DVR to router via ethernet, assign IP address, port forward on the router, and access using a compatible web browser.”
At American S.E.A.L. Patrol Division, we understand these steps might sound technical, so we ensure all our Houston clients’ systems are properly configured for secure remote access during installation. Nothing beats the peace of mind of checking in on your property while you’re miles away.
What factors affect DVR storage duration the most?
The question we hear most often is: “How long will my digital video surveillance recorder keep my footage?” The answer depends on several key factors that all affect your storage capacity.
Resolution makes the biggest impact. Higher resolution cameras capture more detail but create much larger files. A 1080p camera uses about 2-3 times more storage than a 720p camera, while 4K footage demands roughly 4 times more space than 1080p. It’s always a balance between detail and duration.
Frame rate is next on the list. Recording at 30 frames per second creates smooth video but requires twice the storage of 15fps. For most surveillance needs, 7-15fps provides perfectly usable footage while extending your storage time significantly.
The compression technology your DVR uses matters too. Newer systems with H.265 compression can reduce storage needs by 30-50% compared to the older H.264 standard – a huge improvement that can add weeks to your retention time.
Your recording mode might be the easiest factor to adjust. Continuous recording uses maximum storage, while motion-activated recording can reduce storage needs by 40-80% by only capturing when something’s happening. Many of our Houston clients use scheduled recording during high-risk hours to focus their storage where it matters most.
Of course, each additional camera linearly increases your storage requirements, and cameras pointed at busy areas with lots of movement will use more storage than those watching static scenes.
“Most households see a DVR recording cycle of up to 30 to 60 days before footage is overwritten, while businesses typically maintain 60 to 90 days of recordings,” according to industry standards.
For maximum storage duration, we recommend using motion detection where appropriate, adjusting resolution based on each camera’s purpose, implementing H.265 compression if available, and adding larger or additional hard drives when needed.
At American S.E.A.L. Patrol Division, we help our clients find the right balance between image quality and storage duration to meet their specific security needs.
Conclusion
Throughout this guide, we’ve journeyed through the fascinating world of digital video surveillance recorders and finded how these powerful devices form the backbone of effective security systems. Whether you’re a homeowner looking to protect your family or a business owner safeguarding your assets, DVR systems offer reliable protection that’s both accessible and effective.
Remember those key advantages we explored? Digital video surveillance recorders provide cost-effective monitoring that continues working even when your internet doesn’t. The peace of mind that comes from knowing your system is capturing important events 24/7 is truly invaluable.
The technology has come so far from the old VCR recording days! Today’s DVRs offer impressive features like motion detection that only records when something’s happening, AI analytics that can tell the difference between your neighbor’s cat and an actual intruder, and the ability to check your cameras from anywhere in the world on your smartphone.
One thing we emphasize to all our Houston clients at American S.E.A.L. Patrol Division is the importance of planning ahead for your storage needs. There’s nothing more frustrating than finding an incident occurred just after your system overwrote the footage! With proper setup, your digital video surveillance recorder will maintain a comprehensive video history when you need it most.
Security isn’t just about installing equipment—it’s about installing it correctly. Proper placement, secure configuration, and regular maintenance aren’t just technical details; they’re essential steps that protect both your property and your privacy. A poorly installed system can create a false sense of security that’s worse than having no system at all.
At American S.E.A.L. Patrol Division, we’ve spent over 15 years helping Houston residents and businesses sleep better at night. We’ve seen how a well-designed digital video surveillance recorder system can make all the difference during critical moments. Our team takes pride in creating customized security solutions that address your specific concerns while leveraging the latest technology.
Think about what matters most to you—perhaps it’s making sure your children arrive home safely from school, preventing inventory shrinkage at your small business, or simply knowing your home is protected while you’re on vacation. A properly designed DVR system transforms these worries into confidence, recording important events, preserving evidence, and keeping watchful eyes on your property around the clock.
Ready to take the next step toward better protection? We’d love to help. Contact American S.E.A.L. Patrol Division today for a friendly, no-pressure consultation. Our experienced team will assess your unique situation, recommend appropriate solutions, and ensure your system is installed with the care and attention to detail that has made us Houston’s trusted security partner.
